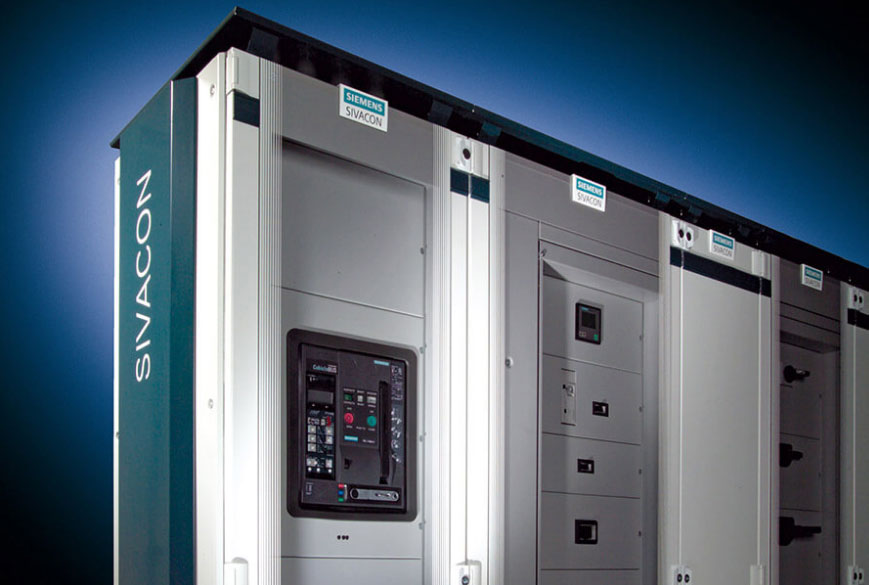

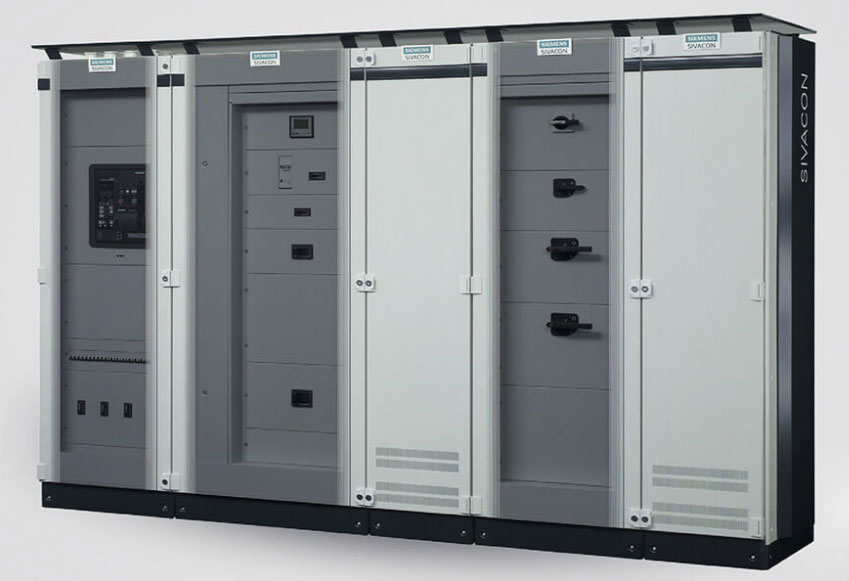

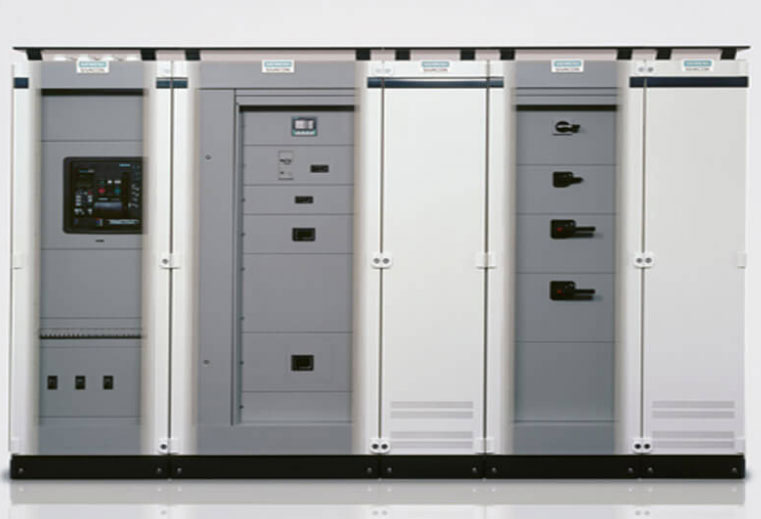

SIVACON S4

With maximum safety, withdrawable design & ideal solutions new generation Sivacon S8 panels have type test certificate (TTA), double-sided (dual front) structure, forms from 1 to 4b, protection from IP30 till IP54 & current up to 7000A and appear to be excellent solutions for residential & industrial buildings.

Since 2013 Egesim company has started production of Sivacon S4 panels to find economic solution for distributional system up to 4000A. Sivacon S4 can be used in any system because of its modular structure and mounting methods variety.

We design panels in accordance with our customers’ reqirements, using licensed Siemens-Simaris programme. According to the data of this programme, sheet components are made by Siemens and we perform assembly & installation.

General

Panels Sivacon S4 with maximum safety, attractive design are an ideal & economic solution for residential & industrial buildings with type test certificates (TTA), successful test of inner arc, forms from 1 to 4b, protection class from IP30 to IP55 & up to 4000A.

  • Rated insulation voltage (Ui) :1000V,
  • Operating voltage (Ue) :up to 690V
  • Main busbar current (I) :up to 4000A
  • Short-time withstand current :100kA (1s)
  • Nominal impulse voltage (U imp) :12kV
  • Classification :from form 1 to form 4b (IEC 60439-1)
  • Colour :RAL 7035
  • Protection class :from IP30 to IP55 (According to IEC 60529, EN 60529)
Featured
  • Maximum operational safety with type test certificates (TTA),
  • Personnel safety with inner arc tests & arc barriers,
  • Possibility of clasification from form 1 up to form 4b,
  • Installation convenience, flexibility & expandability because of modular structure,
  • High quality industrial design,
  • Variable busbar position,
  • Possibility of bottom/top cable or busbar input/output.
Standarts
  • LV switching & control group test :IEC 61439-1 / -2
  • Internal error test (inner arc) :IEC 61641, VDE 0660 Part 500, Supplement 2 (Ue up to 400 V, Icw up to 50 kA, t = 100 msec)
  • Protection class test :IEC 60529
  • Inner classification test :IEC 61439-1 / -2
